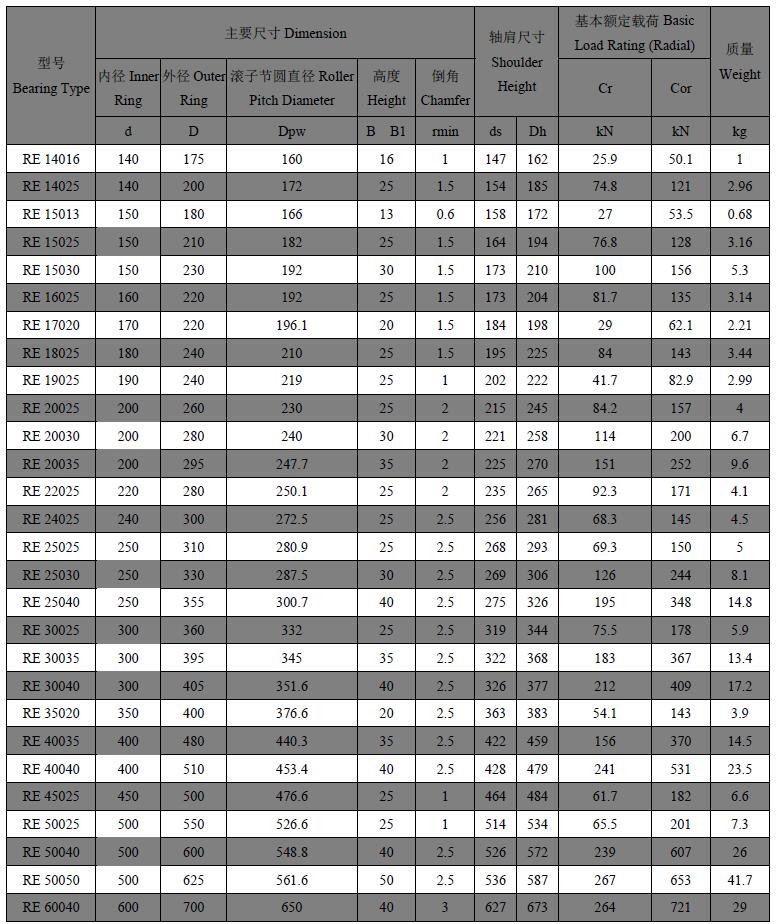

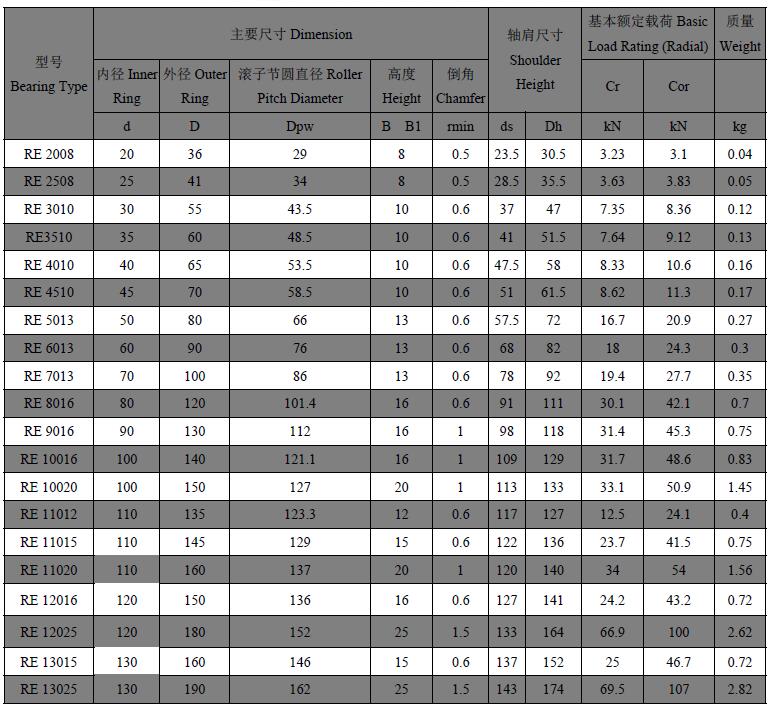

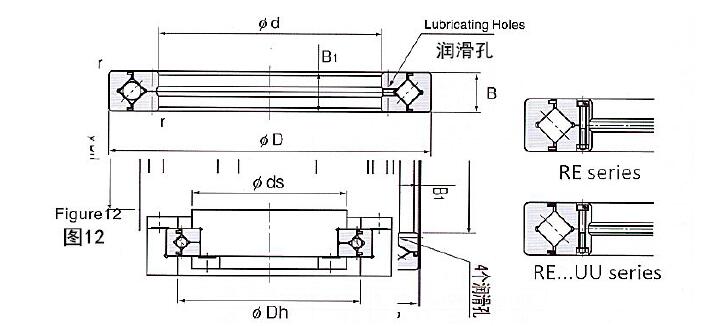

  2.2 RE 型(外圈整体、内圈分体)RE series(Inner ring division type,outer rotating)

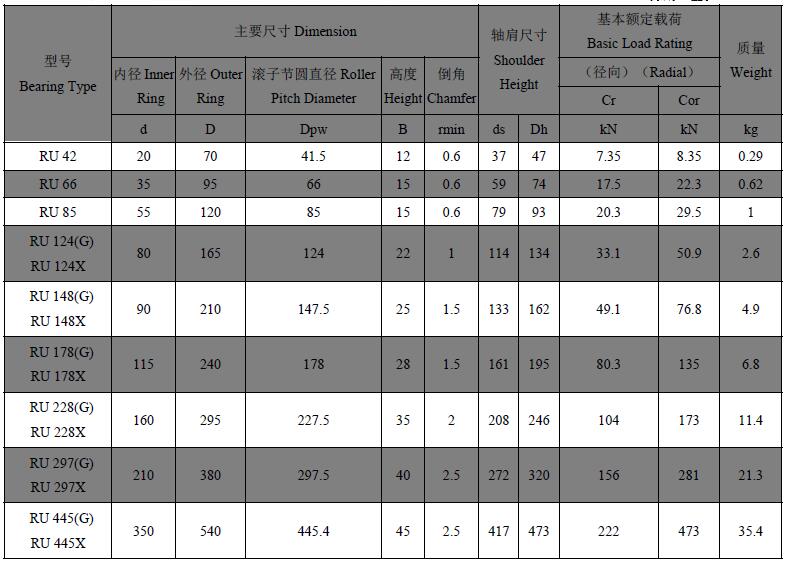

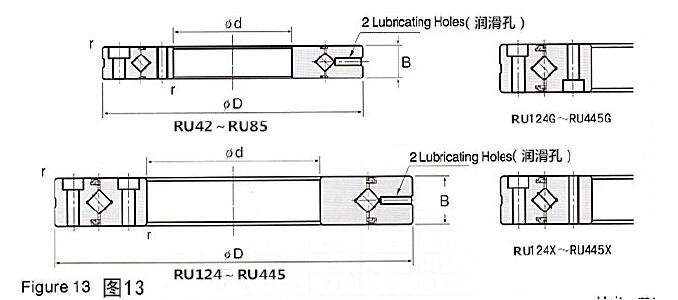

  1.3 RU 型(内外圈整体、带安装孔)RU series(Inner Ring Rotation/ Outer Ring rotation )



  注1:RU 型备有油嘴,可作为任选配件使用。
  Note1: It can be used as optional accessory, RU type with lubricating nipple.
  注2:如有需要,请在型号末尾加上:“—N”。
  Notel: Please add “—N” at the end of the model,if you need.

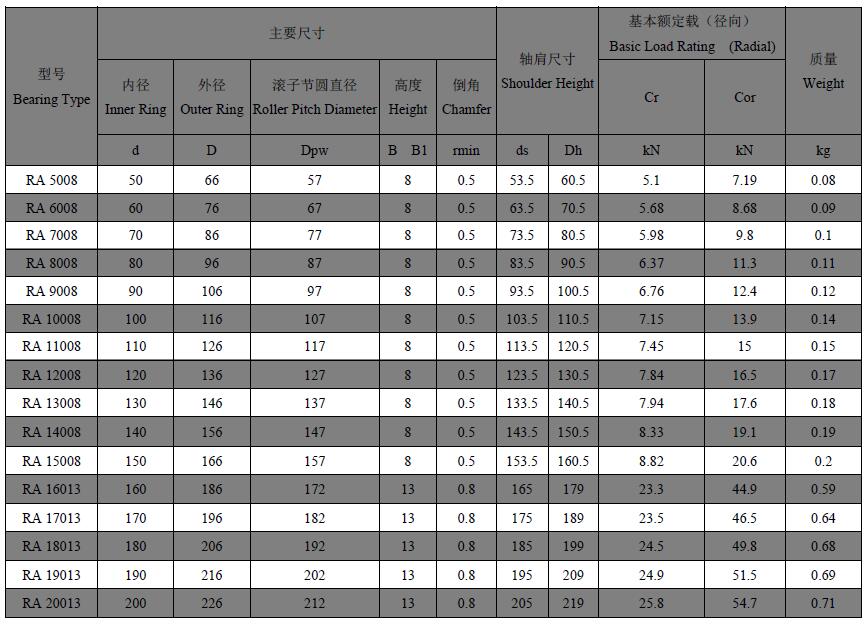

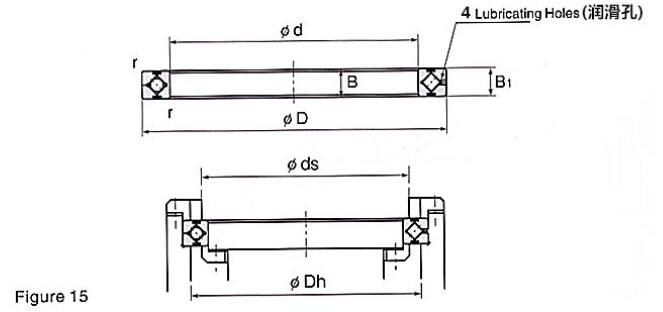

  1.4 RA 型(内圈整体、外圈分体、超薄)RA series(Inner ring integrity, outer ring division)

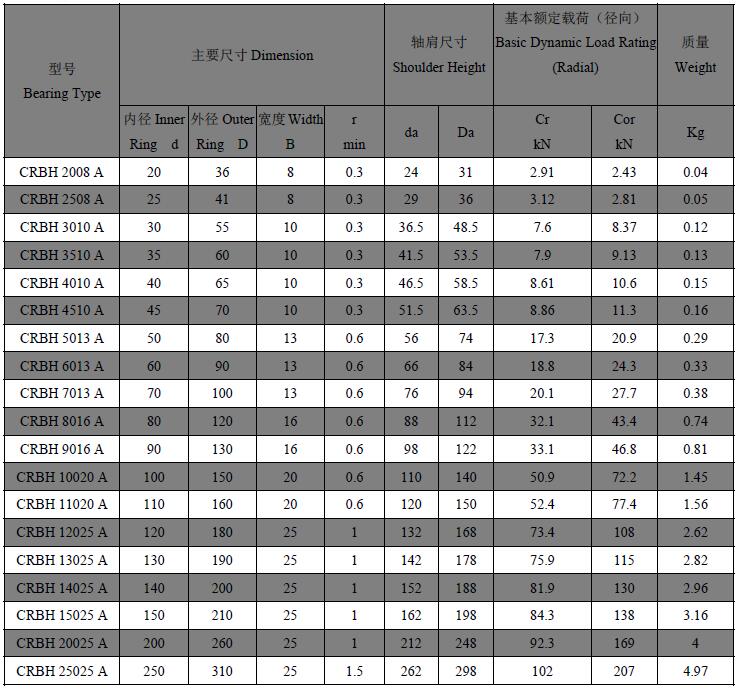

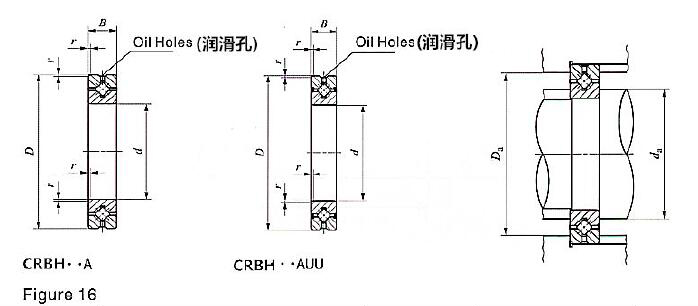

  1.5 CRBH 型(内外圈整体、超薄)CRBH Inner Ring / Outer Ring Integrity, Thin Section

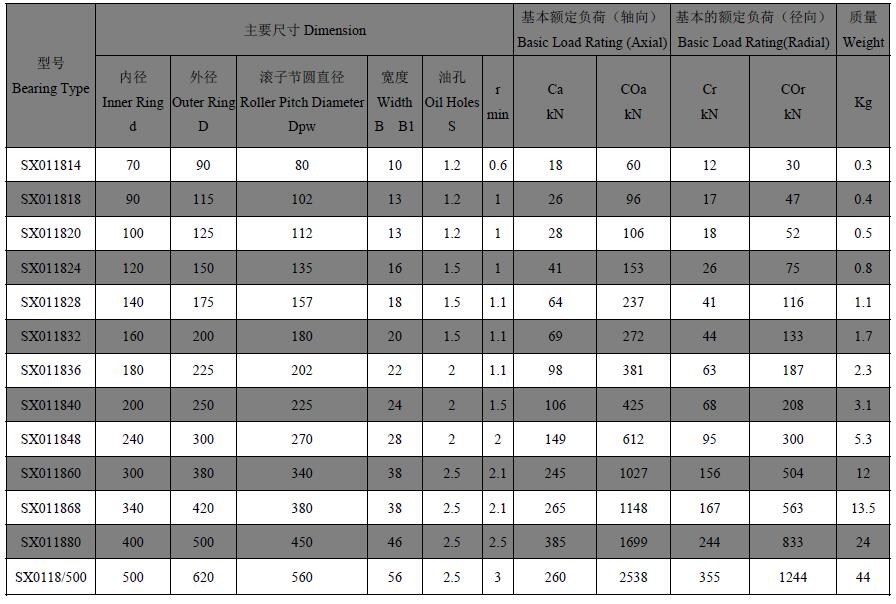

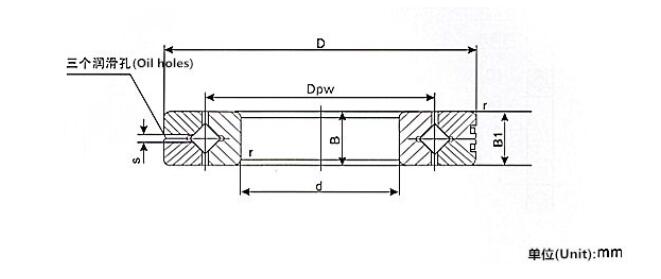

  1.6 SX 系列(内圈整体、外圈分体、超薄)SX series(Inner ring integrity,outer ring division,thin section)

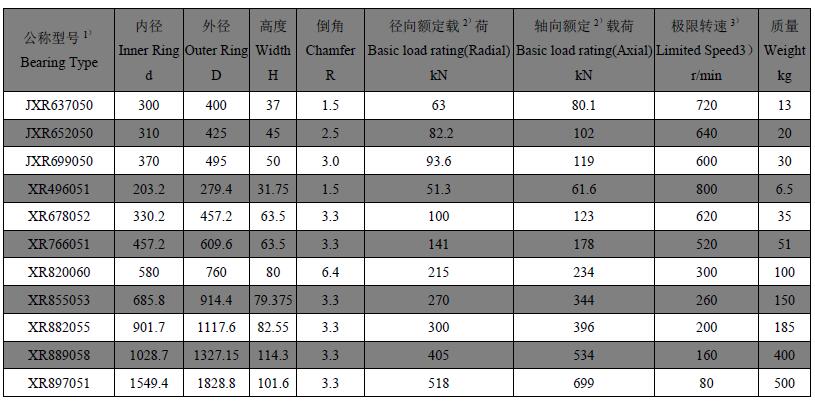

  1.7 JXR/XR 系列尺寸规格表JXR/XR Dimension table


  1) 载荷的计算是基于90×l06 转(轴承的材料采用表面渗碳钢)。
  The calculation of the load is on the basic of 90×106(The bearing material is carburizingsteel) .
  2) 预载荷大小、配合公差、轴承散热条件等影响轴承的极限转速。表中所列极限转速是在循环油润滑条件下的参考数值。
  The limited speed depends on the preload. the fit tolerance and the heat release conduction and so on. The limited speed values in the table all for reference on the basic of circulating lubrication.
  注意:1)我们也可以提供其它结构形式的交叉圆锥滚子轴承。
  Note: We also can offer other types structures crossed taper roller bearings.
  2)如需要特殊的尺寸、内外圈带安装孔、更高精度或者其它的结构等的轴承,请与我们联系!
  If any need special dimension. with fixing holes on inner rings or outer rings.higher precision.or other structures, please contact with Ouna!


  1.8, CSF(G)型(内圈整体,外圈分体) CSF(G) series (outer ring division type with innerrotation)
  内圈整体结构,外圈被分为两片,安装时不需要法兰和轴承座,直接安装连接,使用非常方便,适合CSF(G)各种谐波减速机系列。
  The inner rings have tow parts, and the outer ring is one integer.It is no need the presser flange or housing, the bearing can be installed directly connected, it is very convenient to use thebearing, it is well used for all types of CSF(G) harmonic reducer.
  CSF(G)系列谐波减速机专用轴承型号如下:
  The models of CSF(G) series harmonic reducer bearings as follows:


  5.2, SHF(G)系列(内圈整体,外圈整体)SHF(G) series (Inner Ring / Outer Ring Integrity)内圈和外圈都为整体结构,安装对性能几乎无任何影响,能够获得稳定的的旋转精度和扭矩,使用非常方便,适合SHF(G)各种谐波减速机系列。
  It has an integrated inner and outer ring structure, its performance is minimally affected by the mounting procedure, so it is can ensure stable rotation accuracy and torque. it is very convenient to use the bearing, it is well used for all types of SHF(G) harmonic reducer.

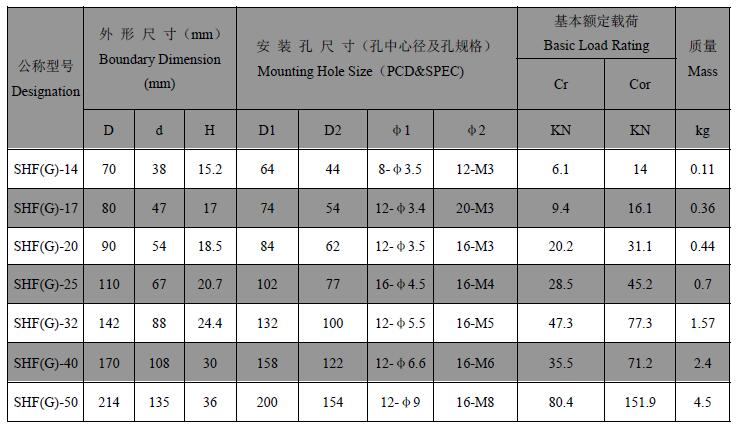

  SHF(G)系列谐波减速机专用轴承型号如下:
  The models of SHF(G) series harmonic reducer bearings as follows:




  我司***研发、设计、制造谐波减速机专用交叉滚子轴承,针对谐波减速机系列专用轴承客户提供相关咨询服务,需要了解谐波减速机专用轴承价格、详细参数、使用及安装、等
