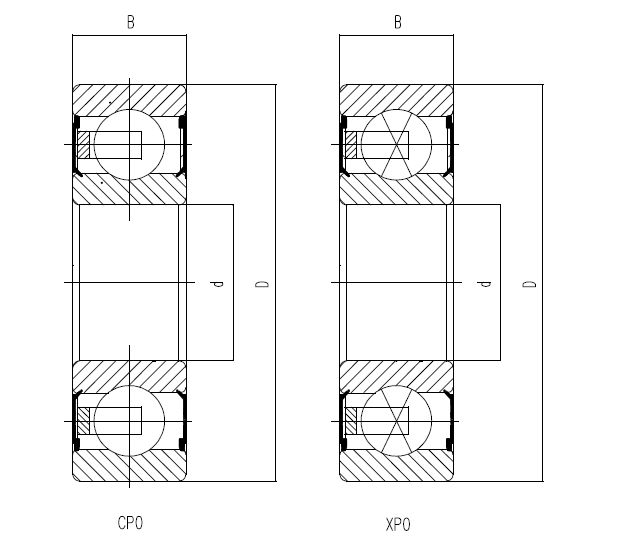

JG400XP0|JG400CP0双铁盖 双胶盖密封
作者： 发布时间：2020-06-30 浏览次数：1621
洛阳华纳精密轴承科技有限公司研发的带双密封等截面球轴承，密封结构可以选配 双侧骨架式胶盖密封，双侧铁盖密封。材质可以选用 轴承钢 不锈钢。产品广泛用于航天航空，半导体，纺织机械，机械手臂，数控设备，玻璃生产设备，雷达，医疗 等行业。
公司经过多年生产研发经验，逐步完善了等截面薄壁球轴承及其非标薄壁轴承的的研发、生产工艺流程，尤其在生产工艺方面具有丰富的、先进的工艺理念。随着公司生产的等截面薄壁球轴承大内经从40英寸扩大到60英寸，截面宽度保持在1英寸的国内大等截面薄壁球轴承的顺利下线，标志着公司已经完全掌握了全系列大尺寸等截面薄壁球轴承的设计及生产技术，华纳在等截面薄壁球轴承领域内首先形成全系列、全尺寸的产品设计、研发、生产能力，再次站到了等截面薄壁球轴承等特种轴承领域的制高点，也象征着国产特种轴承的设计、生产能力取得了突破性进展。
| 型号 Type | 型号 Type | 尺寸 | 基本载荷 | Weight | |||||||
| (inch/mm) Dimension | Basic Cap.N | Kg | 国外型号 | 国外型号 | |||||||
| d | D | B | 径向Radial | 轴向Thruet | KAYDON | KAYDON | |||||
| Cor | Cr | Coa | Ca | ||||||||
| HNJG070XP0 | HNJG070CP0 | 7 | 9 | 1 | 58363 | 45375 | 145929 | 68453 | 2.631 | JG070XP0 | JG070CP0 |
| 177.8 | 228.6 | 25.4 | |||||||||
| HNJG075XP0 | HNJG075CP0 | 7.5 | 9.5 | 1 | 60808 | 46272 | 152019 | 70320 | 2.766 | JG075XP0 | JG075CP0 |
| 190.5 | 241.3 | 25.4 | |||||||||
| HNJG080XP0 | HNJG080CP0 | 8 | 10 | 1 | 65653 | 48370 | 164198 | 74009 | 2.948 | JG080XP0 | JG080CP0 |
| 203.2 | 254 | 25.4 | |||||||||
| HNJG090XP0 | HNJG090CP0 | 9 | 11 | 1 | 72987 | 51233 | 182423 | 79432 | 3.264 | JG090XP0 | JG090CP0 |
| 228.6 | 279.4 | 25.4 | |||||||||
| HNJG100XP0 | HNJG100CP0 | 10 | 12 | 1 | 80277 | 53993 | 200647 | 84633 | 3.582 | JG100XP0 | JG100CP0 |
| 254 | 304.8 | 25.4 | |||||||||
| HNJG110XP0 | HNJG110CP0 | 11 | 13 | 1 | 87567 | 56625 | 218916 | 89700 | 3.899 | JG110XP0 | JG110CP0 |
| 279.4 | 330.2 | 25.4 | |||||||||
| HNJG120XP0 | HNJG120CP0 | 12 | 14 | 1 | 94860 | 37830 | 237140 | 94590 | 4.218 | JG120XP0 | JG120CP0 |
| 304.8 | 355.6 | 25.4 | |||||||||
| HNJG140XP0 | HNJG140CP0 | 14 | 16 | 1 | 109440 | 41610 | 273630 | 104060 | 4.899 | JG140XP0 | JG140CP0 |
| 355.6 | 406.4 | 25.4 | |||||||||
| HNJG160XP0 | HNJG160CP0 | 16 | 18 | 1 | 124060 | 45250 | 310130 | 113130 | 5.579 | JG160XP0 | JG160CP0 |
| 406.4 | 457.2 | 25.4 | |||||||||
| HNJG180XP0 | HNJG180CP0 | 18 | 20 | 1 | 138640 | 48720 | 346620 | 121840 | 6.214 | JG180XP0 | JG180CP0 |
| 457.2 | 508 | 25.4 | |||||||||
| HNJG200XP0 | HNJG200CP0 | 20 | 22 | 1 | 153220 | 52100 | 383070 | 130240 | 7.167 | JG200XP0 | JG200CP0 |
| 508 | 558.8 | 25.4 | |||||||||
| HNJG220XP0 | HNJG220CP0 | 22 | 24 | 1 | 167799 | 80686 | 419564 | 138373 | 7.617 | JG220XP0 | JG220CP0 |
| 558.8 | 609.6 | 25.4 | |||||||||
| HNJG250XP0 | HNJG250CP0 | 25 | 27 | 1 | 189713 | 86055 | 474282 | 150152 | 8.841 | JG250XP0 | JG250CP0 |
| 635 | 685.8 | 25.4 | |||||||||
| HNJG300XP0 | HNJG300CP0 | 30 | 32 | 1 | 226206 | 94234 | 565404 | 168821 | 10.564 | JG300XP0 | JG300CP0 |
| 762 | 812.8 | 25.4 | |||||||||
| HNJG350XP0 | HNJG350CP0 | 35 | 37 | 1 | 262700 | 101546 | 656527 | 186557 | 12.287 | JG350XP0 | JG350CP0 |
| 889 | 939.8 | 25.4 | |||||||||
| HNJG400XP0 | HNJG400CP0 | 40 | 42 | 1 | 281413 | 108156 | 748094 | 203448 | 13.965 | JG400XP0 | JG400CP0 |
| 1016 | 1066.8 | 25.4 | |||||||||
